All StarfishPRO models share the same features as provided by a common set of electronics. All models also share the same enclosure that includes a mechanical shutter, and enhanced cooling with a 2-stage TEC cooler.

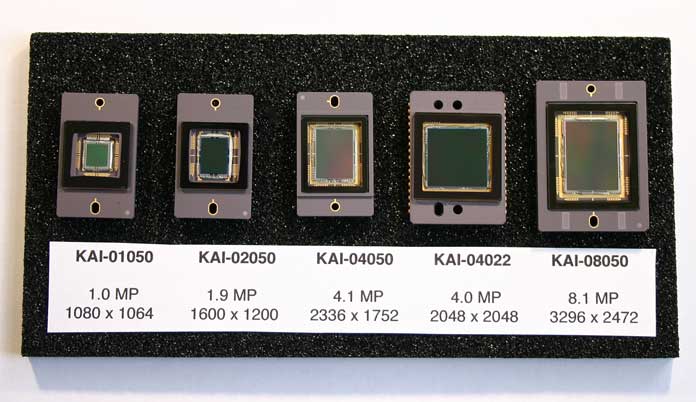

The various models are differentiated by the image sensor installed in the camera. All of the following sensors are manufactured by Eastman Kodak. For each of the sensors supported, they are available in both Monochrome and Color versions. |
|
|
Data sheets for these sensors are available at http://www.kodak.com |
|
|
|
Model |
CCD |
Pixels |
Resolution |
CCD Configuation |
CCD Type |
Scan Type |
Pixel Size |
Image Size |
Full Well |
Max QE |
Cost |
StarfishPRO 1M |
KAI-01050-ABA |
1.0M |
1024x1024 |
Mono |
Interline |
Progressive |
5.5um x 5.5um |
5.632mm x 5.632mm |
20,000 e- |
50% |
$2295 |
StarfishPRO 1C |
KAI-01050-CBA |
1.0M |
1024x1024 |
Color |
Interline |
Progressive |
5.5um x 5.5um |
5.632mm x 5.632mm |
20,000 e- |
42% |
$2295 |
StarfishPRO 2M |
KAI-02050-ABA |
1.92M |
1600x1200 |
Mono |
Interline |
Progressive |
5.5um x 5.5um |
8.8mm x6.6mm |
20,000 e- |
50% |
$2495 |
StarfishPRO 2C |
KAI-02050-CBA |
1.92M |
1600x1200 |
Color |
Interline |
Progressive |
5.5um x 5.5um |
8.8mm x6.6mm |
20,000 e- |
42% |
$2495 |
StarfishPRO 4M |
KAI-04022-ABA |
4.19M |
2048x2048 |
Mono |
Interline |
Progressive |
7.4um x 7.4um |
15.15mm x15.15mm |
40,000 e- |
55% |
$3495 |
StarfishPRO 4C |
KAI-04022-CBA |
4.19M |
2048x2048 |
Color |
Interline |
Progressive |
7.4um x 7.4um |
15.15mm x15.15mm |
40,000 e- |
45% |
$3495 |
StarfishPRO 4MW |
KAI-04050-ABA |
4.09M |
2336x1752 |
Mono |
Interline |
Progressive |
5.5um x 5.5um |
12.85mmx9.64mm |
20,000 e- |
50% |
$2695 |
StarfishPRO 4CW |
KAI-04050-CBA |
4.09M |
2336x1752 |
Color |
Interline |
Progressive |
5.5um x 5.5um |
12.85mm x9.64mm |
20,000 e- |
43% |
$2695 |
StarfishPRO 8M |
KAI-08050-ABA |
8.15M |
3296x2472 |
Mono |
Interline |
Progressive |
5.5um x 5.5um |
18.13mm x13.60mm |
20,000 e- |
50% |
$2895 |
StarfishPRO 8C |
KAI-08050-CBA |
8.15M |
3296x2472 |
Color |
Interline |
Progressive |
5.5um x 5.5um |
18.13mm x13.60mm |
20,000 e- |
43% |
$2895 |
|
|
